INJECTION UNIT
MODEL	UNIT	BN-60	BN-90	BI-100	BI-130	BI-180	BI-220	BI-250
Screw Diameter	mm	30/35	35/40	35/40/42	40/54	40/45/55	45/50/55	55/60/65
Screw L/D Ratio	mm	20	20	20	22.5/20	23.3/21/19	24.4/22/20	23/21.1/19.5
Shot Volume	cm2	190/149	170/225	170/225/250	255/325	382/471/570	397/490/593	594/706/829
Shot Weight	g	100/135	160/205	160/205/230	235/300	345/425/515	362/446/540	535/635/746
Injection Pressure	kg/cm	1800/1600	1850/1600	1850/1600/1500	1750/1600	1990/1610/1330	2070/1680/1380	1840/1540/1310
Nozzle Stroke	mm	250	250	250	300	300	300	300
CLAMPING UNIT
Mould Clamping Force	Ton	60	90	100	130	180	220	250
Mould Opening Stroke	mm	250	300	330	370	435	475	550
Mould Platen Size	mm	480X480	530X530	540X540	650x650	715X715	780x780	860 x 860
Distance Betweeen Tie Bar	mm	310X310	360X360	370X370	430x430	485X485	520x520	570 x 570
Min. Mould Height	mm	125	150	150	180	200	200	230
Max. Mould Height	mm	330	370	400	450	500	560	580
Max. Day Light	mm	580	670	730	820	935	1035	1130
Ejector Stroke	mm	75	85	110	100	170	150	180
ELECTRIC DEVICES
Pump Motor	kw / hp	5.5/7.5	7.5/10	11.6/12.5	13.2/15	15.4/20	18.5/25	20.4/28
Heater	kw	5	5.8	5.9	6.25	10.2	14	16.5
Total Electrical Power	kw/hp	10.6/14	13.3/17	17.5/20	17.5/23	25.6/33	32.5/43	36.9/49
GENERAL
Machine Size (LXWXH)	Mtr.	4x8x1.3	4.9x0.9x1.3	4.2x1.13x1.6	5.4x1.0x1.5	5x1.2x1.8	5.7x1.6x2.3	5.9x1.4x1.95
Machine Weight (Appro.)	Ton	2.5	3	3.5	4.25	6	7	9
Oil Tank Capacity	Ltr.	220	300	300	350	415	415	415

EN Properties		UNIT	EN 120	EN 140	EN 160	EN 200	EN 220	EN 250	EN 300	EN 350
CLAMPING SYSTEM	Clamping Stroke	mm	322	360	420	450	580	560	620	650
	Clamping Force	ton	120	140	160	200	220	250	300	350
	Mould Thickness	mm	120~380	120~420	!50~450	180~520	200-550	200-550	200-620	200-700
	Inner Distance of tie Bar	mm	355x355	410x410	455x450	515x510	580x580	620x620	720x720	760x760
	Mould Plate	mm	500x595	570x570	640x640	755x750	810x810	960x980	1040x1050	1110x1120
	Ejection Stroke	mm	100	100	130	130	130	150	150	150
	Ejection Force	ton	3.3	4.6	4.6	4.6	4.6	7.0	7.0	7.0
see more...

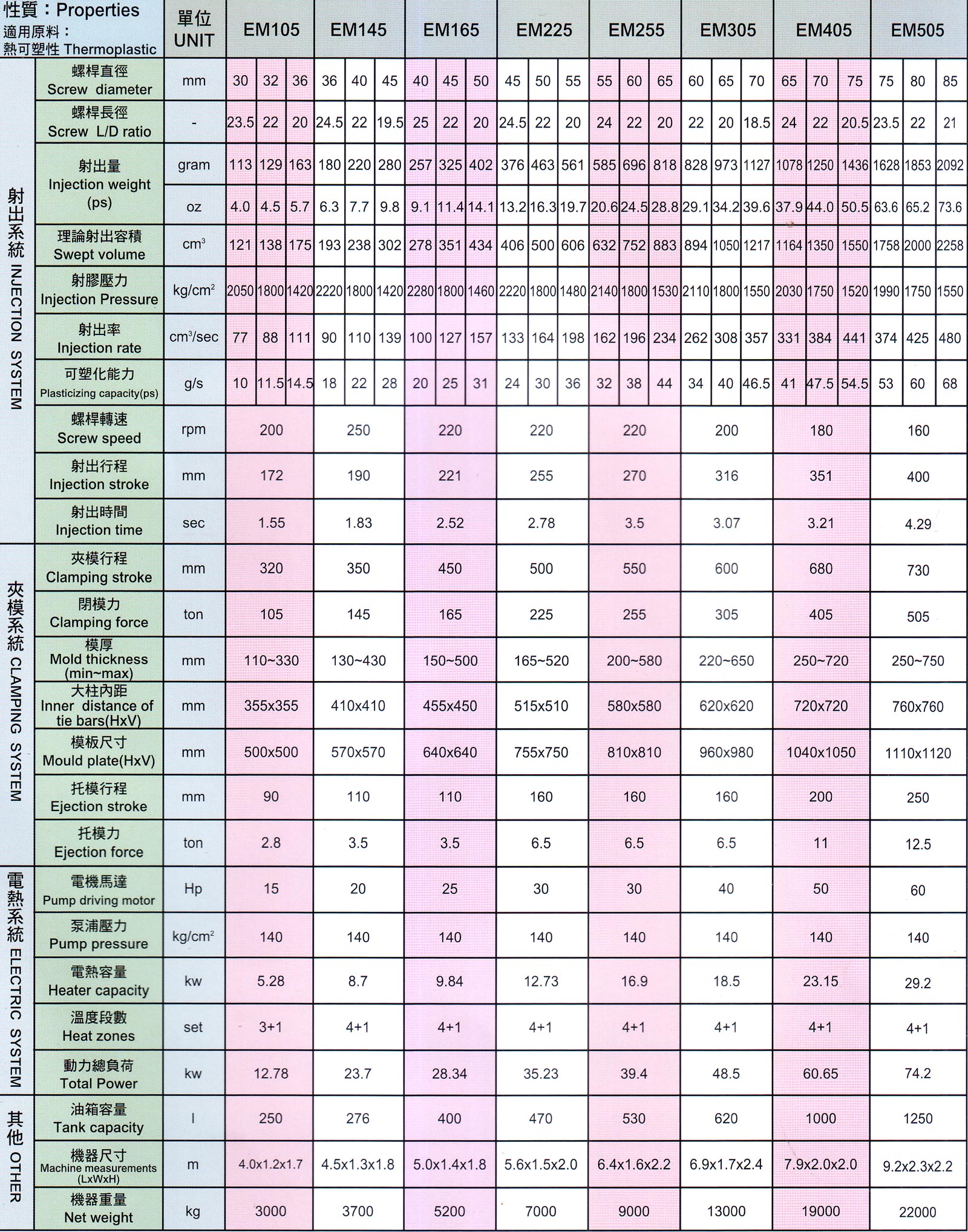

EM Properties		UNIT	EM 105	EM 145	EM 165	EM 225	EM 255	EM 305	EM 405	EM 505
CLAMPING SYSTEM	Clamping Stroke	mm	320	350	450	500	550	600	680	730
	Clamping Force	ton	105	145	165	225	255	305	405	505
	Mould Thickness	mm	110-330	130-430	150-500	165-520	200-580	220-650	250-720	250-750
	Inner Distance of tie Bar	mm	355x355	410x410	455x450	515x510	580x580	620x620	720x720	760x760
	Mould Plate	mm	500x500	570x570	640x640	755x750	810x810	960x980	1040x1050	1110x1120
	Ejection Stroke	mm	90	110	110	160	160	160	200	250
	Ejection Force	ton	2.8	3.5	3.5	6.5	6.5	6.5	11	12.5
see more...

Properties Thermoplastic		UNIT	EN-120P		EN-140P		EN-160P		EN-200P		EN-220P		EN-250P		EN-300P		EN-350P		EN-400P
INJECTION SYSTEM	Screw diameter	mm	36	40	40	45	45	50	50	55	55	60	60	65	65	70	65	70	65	70
	Screw L/D ratio	-	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0	25.0
	Injection weight (PET)	gram	210	259	288	365	402	496	540	654	709	843	909	1066	1141	1324	1218	1414	1546	1774
		oz	7.4	9.1	10.0	12.9	14.0	17.5	18.9	23.0	24.8	29.7	31.8	37.5	40.0	46.6	42.6	49.8	54.0	62.5
	Swept volume	cm3	183	226	251	318	350	432	471	570	618	735	792	929	995	1154	1062	1232	1347	1546
	Injection pressure	kg/cm2	1623	1313	2027	1602	1662	1347	1490	1231	1424	1196	1421	1211	1416	1220	1775	1530	1530	1331
	Injection rate	cm3/sec	135	168	143	182	200	247	239	287	272	324	310	317	321	372	303	352	364	418
	Plasticizing capacity	g/s	22	31	31	43	39	56	56	68	68	86	59	69	69	73	72	85	78	89
	Injection stroke	mm	180		200		220		240		260		280		300		320		350
	Injection time	sec	1.35		1.75		1.75		1.99		2.27		2.55		3.1		3.5		3.7
CLAMPING SYSTEM	Clamping stroke	mm	322		380		420		450		480		560		620		650		680
	Clamping force	ton	120		140		160		200		220		250		300		350		400
	Mold thickness(min~max)	mm	120∼380		120∼420		150∼450		180∼520		200∼550		200∼620		200∼700		250∼800		250∼800
	Inner distance of tie bars(HxV)	mm	364×364		414×410		458×440		482×452		520×485		562×562		620×620		660×620		700×700
	Mould plate(HxV)	mm	560×595		600×630		678×680		722×752		780×780		822×862		901×901		940×940		970×955
	Ejection stroke	mm	100		100		130		130		130		150		150		150		200
	Ejection force	ton	3.3		4.6		4.6		4.6		4.6		5.9		5.9		5.9		8.5
ELECTRIC SYSTEM	Pump driving motor	Hp	20		25		30		30		40		50		50		60		60
	Pump pressure	kg/cm2	140		140		140		140		140		140		140		140		140
	Heater capacity	kw	5.7		6.4		8.0		10.0		14.0		14.0		20.2		20.2		25.0
	Heat zones	set	4		5		5		6		6		6		6		6		6
	Total power	kw	20.7		25.15		30.5		32.5		44.0		51.5		57.7		65.2		70.0
OTHER	Tank capacity	l	220		320		350		450		450		450		600		650		700
	Machine measurements(LxWxH)	m	4.4×1.2×1.7		4.9×1.3×2.0		4.9×1.3×1.9		5.7×1.4×2.1		6.0×1.5×2.3		6.2×1.6×2.4		6.8×1.7×2.5		7.0×1.8×2.7		7.4×1.9×2.8
	Net weight	kg	3900		5400		6500		7800		9200		12500		14000		16000		18600

ITEM	UNIT	MAC 1H	MAC 1 HE	MAC 1 HD	MAC 1 HDE	MAC 7H/7HFAC	MAC 12HD	MAC 14 HD	MAC IHDS	MACIHS
Shot capacity	gms*	45	60	45	60	45	150	250	26	26
Barrel diameter	mm	30	30	30	30	30	50	50	30	30
Heater capacity	kW	1.5	2	1.5	2	1.5	2.5	2.5	1	1
Clamping force	tons	---	---	6	6	30	12	15	5	-
Die clamping	--	manual	manual	Direct hydraulic cylinder	Direct hydraulic cylinder	Toggle actuated by hydraulic cylinder	Direct hydraulic cylinder	Direct hydraulic cylinder	Hydraulic Cylinder	Manual
Max. mould size	mm x mm	200 x 200	200 x 200	200 x 200	200 x 200	200 x 200	250 x 250	300 x 300	100 x 100	100 x 100
Min. mould thickness	mm	120	120	120	120	100	120	120	90	90
Max. mould thickness	mm	400	400	400	400	250	400	400	190	190
Max. mould opening	mm	---	120	120	120	200	120	120	90	90
Daylight opening	mm	400	400	400	400	450	400	400	-	-
Motor	h.p.	3	3	3	5	5	5	7.5	1.5	1.5
Oil tank capacity	litres	60	60	60	60	70	80	80	25	25
System pressure	kg/cm 2	80	80	80	105	105	105	105	105	105
Weight	kg	450	500	500	600	750	750	800	375	300

CLAMPING UNITS		IM-50	IM-90	IM-110	IM-130	IM-150	IM-200
Clamping Force	Kn	500	900	1100	1300	1500	2000
Opening Stroke	mm	260	320	350	380	415	460
Platen Size	mm	450 x 425	550 x 555	575 x 555	628 x 620	675 x 660	751 x 706
Space Between Tie Bar	mm	305 x 280	360 x 360	380 x 360	410 x 410	455 x 535	510 x 460
Max.Daylight	mm	580	670	750	830	865	960
Mould Height(Min-Max)	mm	100-320	100-350	150-400	150-450	150-450	150-500
Hydraulic Ejector Stroke	mm	70	85	115	140	150	130
Hydraulic Ejector Force	Kn	20	31	38	38	38	71
Ejector Number	n	1	5	5	5	5	9
Mould Register Hole(HB)	mm	100	125	125	125	160	160
